If you are at the top of the tree list (the word Collection is highlighted) and you click the Create Collection toolbar button, the Introduction page of the Oracle Trace Collection Wizard displays, as shown in Figure 3-1.

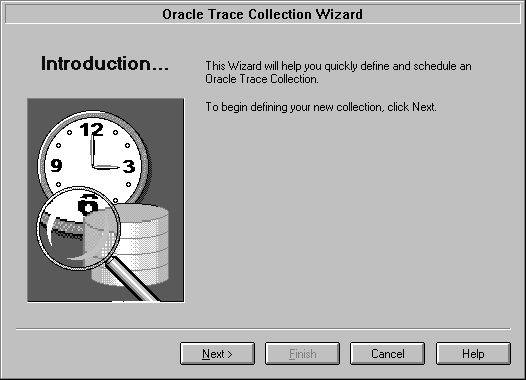

Figure 3-1: Introduction Page of Oracle Trace Collection Wizard
The information you enter in the Collection Wizard pages defines the collection parameters. Each step in the wizard gathers information based on the input from the previous step. The Collection Wizard prompts you for information in the following order:
Click the Next button to start the definition of the collection.

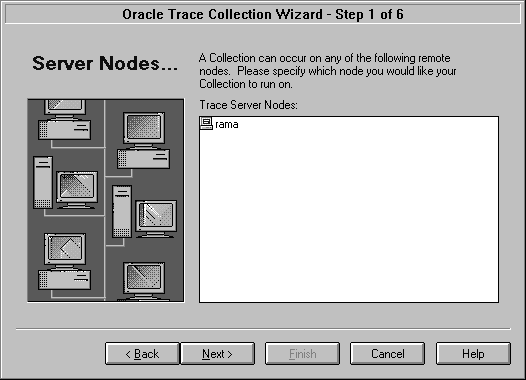

Figure 3-2: Step 1 - Server Nodes
Trace Server Nodes
These are the server nodes that contain valid Oracle installations for running Oracle Trace collections. Select from this list to identify the node where the collection is to be run. Step 2: Choose Installation
In step 2, you choose which Oracle installation you would like the collection to use (see Figure 3-3).
You see this page only if you have more than one ORACLE_HOME installation that has Oracle Trace installed. Otherwise, you will not be prompted with this page. The discovery mechanism locates all the ORACLE_HOME installations on a node. Each ORACLE_HOME installation represents a different version of the Oracle products.
Figure 3-3: Step 2 - Installations
Also, an Oracle installation contains a compatible set of instrumented products. Oracle Trace collections can run on multiple products; however, the products must all belong to one Oracle installation.
Installation
This list shows all available Oracle installations for the selected node. Installed Products
This is a read-only list showing the products available for the currently selected installation. Step 3: Select Event Sets
In step 3, you select the event sets you want to use (see Figure 3-4). An event set is a grouping of events.

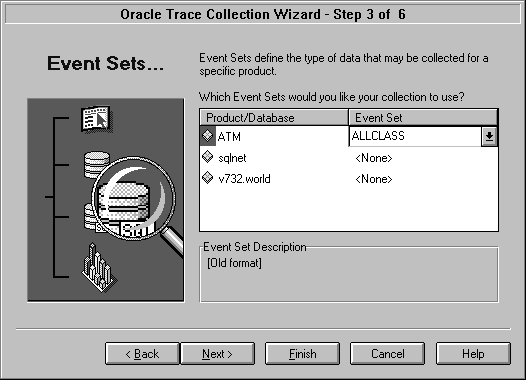

Figure 3-4: Step 3 - Event Sets
Product/Database
This is a list of available products and databases that are instrumented for the selected node and Oracle installation. Event sets can be chosen from one or more products and databases to define the collection. Only one event set can be chosen per product or database. Event Set
This is a list of event sets for the particular product or database. You may select one event set per product or database, or no event sets if the product/database is not to be part of the collection. Select the event set value you want to use.

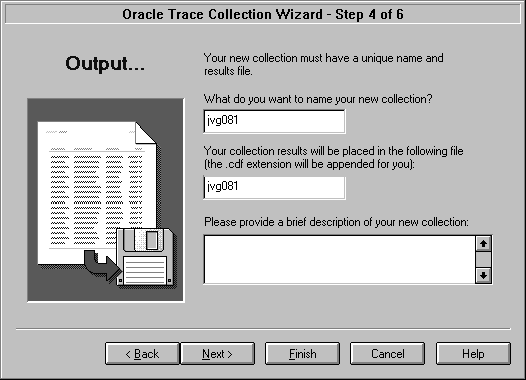

Figure 3-5: Step 4 - Output
Collection Name
If you do not accept the default name, specify a name of up to 16 characters for the collection. There are no character restrictions. Both the collection name and the collection definition file name must be unique on the node where you are collecting the data. Collection Results File
By default, the collection file has the same name as the collection with .cdf (collection definition file) appended. The complete file specification is $ORACLE_HOME/otrace/admin/cdf/name.cdf where name is what was in the Collection Name field. However, this may not be true of non-UNIX systems. The name can be up to 8 characters in length. Description
You also have the option of providing a description of this new collection.
Step 5: Schedule the Collection
In step 5, you have the opportunity both to define the maximum length (in megabytes) of the collection definition file (.cdf) and to provide scheduling information (see Figure 3-6).

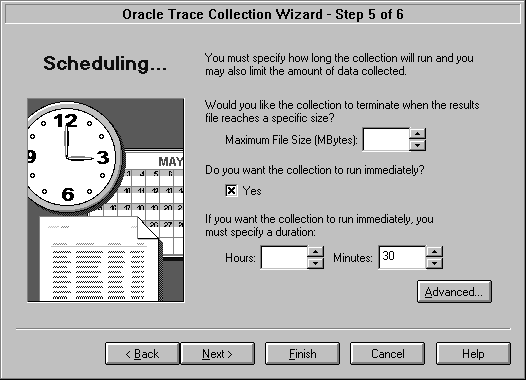

Figure 3-6: Step 5 - Scheduling
Maximum File Size
If you specify a maximum file size, the collection will terminate once the file size is reached, even if other scheduling criteria has not been met. Oracle Corporation recommends that you set this parameter if you have a disk space limitation. The default is not to set the maximum file size. Collection to Run Immediately?
Checking this box signifies you want the collection to run immediately. This is the default. Hours
Use a whole number to define this parameter. Minutes
Use a whole number to define this parameter. The default is 30 minutes. Advanced...
Click the Advanced... button to display the advanced scheduling options, as described in the next section. If you do not choose to run the collection immediately, you need supply the advanced scheduling options. Advanced Scheduling Options
The Advanced Scheduling Options page allows you to schedule the execution of the collection (see Figure 3-7).

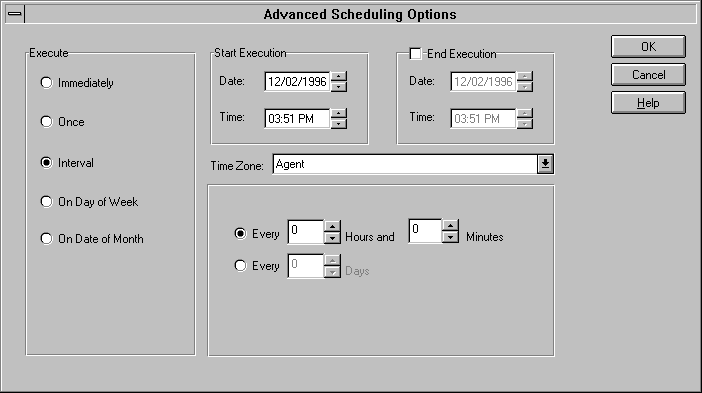

Figure 3-7: Advanced Scheduling Options Page
Execute
Select the frequency with which you want the collection executed. The choices are:

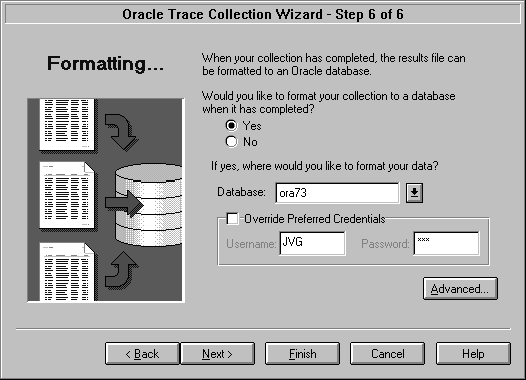

Figure 3-8: Step 6 - Formatting
Yes
Choose Yes if you want to format your collection to a database when the collection is completed. This is the default. No
Choose No if you do not want to format your collection to a database when the collection is completed. Database
If you chose Yes, provide the name of the database where you want your formatted data to reside. Override Preferred Credentials
You can also override preferred credentials. These credentials identify the default format option to be used in the Collection Wizard.

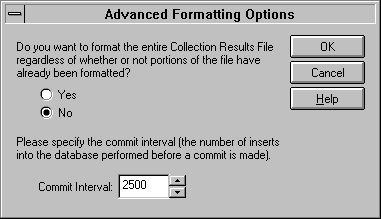

Figure 3-9: Advanced Formatting Options Page
Yes
Choose this option if you want to format the entire collection results file. No
Choose this option if you want to format only unformatted data. This is the default. By specifying this option, you can examine data as it is collected. You do not have to wait for the entire collection results to be formatted before you can look at the data. Commit Interval
You can define the commit interval into the database. The shorter the interval, the longer it will take the collection to format. Also, the larger the commit interval, the larger the rollback segment needs to be for the commit operation to succeed. The default is 2500 inserts before a commit is made. Summary Page
The Oracle Trace Collection Wizard Summary page summarizes all the information you entered while using the Oracle Trace Collection Wizard (see Figure 3-10).

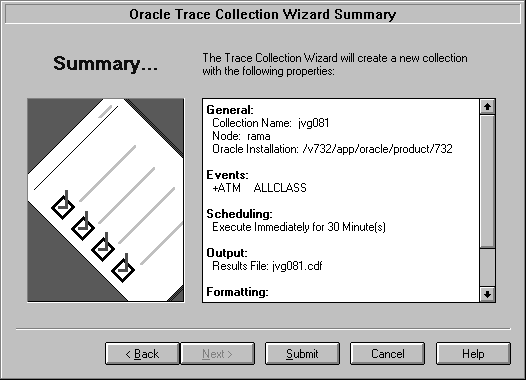

Figure 3-10: Summary Page
The summarized properties are:
Once you are satisfied with the information, click the Submit button to start the collection process.
In the tree list of the Oracle Trace main window, click the collection on which you want to use to base your new collection. Choose Collection=>Create Like... This starts the Collection Wizard. Make the changes you need, following the steps previously outlined in this chapter.
Oracle Trace determines the preferred credentials in the following order. The search continues until one of the criteria is met.
The default is to delete everything, all collection files and all formatted data files. However, by clicking the Advanced button, you can choose which formatted data files you want to delete.
If you do not delete the collection files and the formatted data files, Oracle Trace Manager deletes only the record. You will not see the General, Output, Schedule, and Progress pages for this collection. This also leaves the collection files and formatted data files for you to delete manually at a later time.
For information about deleting formatted data for a collection, see Deleting Formatted Data on page 4-6.
Deleting Formatted Data
To delete formatted data, choose Collection=>Delete Formatted Data. This displays a list of locations where data has been formatted to. Note:
If data has been formatted a number of times to the same database, selecting one location will delete all formatted data relating to that collection in that selected database. Deleting Collection Files
To delete the files associated with a collection, first select a collection name in the Oracle Trace main window. Then choose Collection=>Delete Collection Files.
|
